Drilling Spindles

High torque motorized spindles with high axial stiffness to absorb the large forces in drilling applications.

PDF Brochure

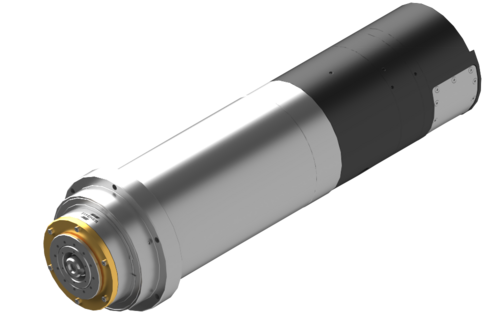

MFW-1220

Diameter120 mm
Tool InterfaceHSK-E40
Max. Speed20'000 rpm
Bearing LubricationGrease
Power (kW) S1 / S610.50 / 13.65 KW
Torque (Nm) S1 / S65.00 / 6.50 Nm

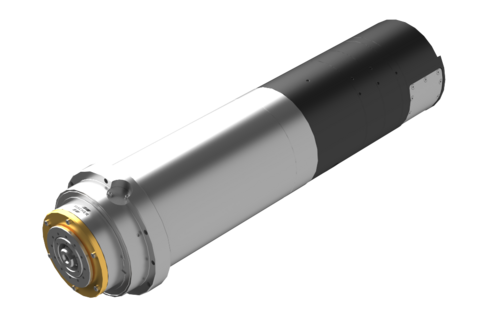

MFW-1303/12

Diameter130 mm
Tool InterfaceHSK-E50
Max. Speed12'000 rpm
Bearing LubricationGrease
Power (kW) S1 / S68.00 / 10.40 kW
Torque (Nm) S1 / S625.50 / 33.15 Nm

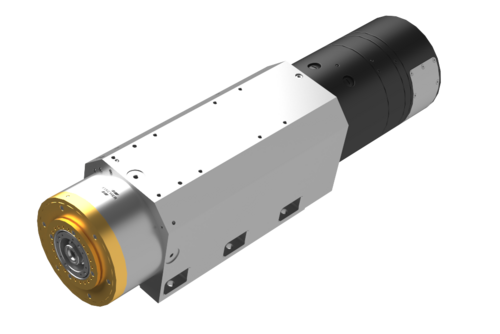

MFW-1206/20

Diameter120 mm
Tool InterfaceHSK-A40
Max. Speed20'000 rpm
Bearing LubricationGrease
Power (kW) S1 / S69.50 / 14.03 kW
Torque (Nm) S1 / S615.10 / 22.30 Nm

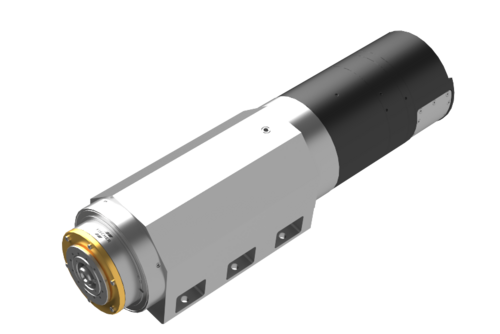

MFW-1309/24

Diameter130 mm
Tool InterfaceHSK-E50
Max. Speed24'000 rpm
Bearing LubricationGrease
Power (kW) S1 / S627.30 / 35.49 kW
Torque (Nm) S1 / S629.00 / 37.70 Nm

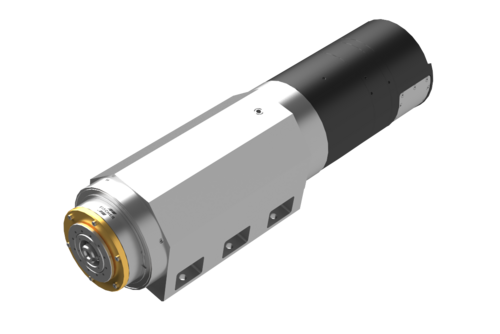

MFW-1216/20

Diameter120 mm
Tool InterfaceHSK-A40
Max. Speed20'000 rpm
Bearing LubricationGrease
Power (kW) S1 / S617.00 / 35.18 kW
Torque (Nm) S1 / S610.10 / 20.90 Nm

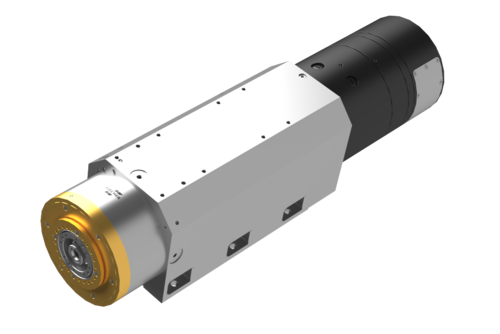

MFW-1216/24

Diameter120 mm
Tool InterfaceHSK-E40
Max. Speed24'000 rpm
Bearing LubricationGrease
Power (kW) S1 / S617.00 / 26.09 kW
Torque (Nm) S1 / S610.10 / 15.50 Nm
