MARKETS
PERFECT ROTATION IN A WIDE RANGE OF INDUSTRIES
The FISCHER Spindle Group develops and markets spindle systems for precision machining in the optical industry, dental and medical technology, in the field of micro-machining, the aircraft industry and tool and die making as well as the automotive industry. Perfect rotation is at the heart of our products, offering a wide variety of solutions at the highest level in various markets.
AEROSPACE
AUTOMOTIVE
WATCH
MEDICAL
DENTAL
RAILWAY
ENERGY
OPTICAL
ELECTRONICS
APPLICATIONS
ALMOST UNLIMITED POSSIBILITIES
Below you will find 15 different applications from FISCHER, such as high-performance milling of aluminum structural components for the aerospace industry or HSC machining in mold and tool making. However, these applications are not exclusive - we would be happy to develop your customer-specific application together with you.
HIGH TORQUE MILLING
- Milling of turbine blades and turbine wheels for the aerospace and power generation industries
- Difficult-to-machine materials such as titanium, Inconel and other high-alloy steels
- Ultra-dynamic machining with long-projecting tools
HIGH-PERFORMANCE MILLING
- Milling of aluminum structural components
- Very high material removal rate (MRR), up to 97% material removal
- Highest productivity, 24 hours / 7 days a week
MACHINING OF COMPOSITE MATERIALS
- Machining of composite parts
- Milling, routing, drilling in one setup
PRECISE MACHINING OF LARGE MOLDS
- Multi-sided machining of voluminous components
- High metal removal rates for roughing, long tooling for machining deep cavities, precision for layering
MACHINING OF WATCH CASES, MOVEMENTS AND BRACELETS
- Milling, drilling, tapping and grinding in the smallest dimensions
- Highest precision when machining gold, titanium, platinum, stainless steel, ceramics and plastics
HSC MACHINING (HIGH-SPEED MILLING) IN MOLD AND TOOL MAKING
- High-precision drilling, milling and grinding of electrodes, forming, die-casting and injection molds
- Machining of hardened steel, aluminum, copper and graphite with very precise contours
- Surfaces in mirror-like quality
- In-process measuring (3D probe) to minimize setups
RIVET HOLE DRILLING OF AEROSPACE PARTS
- Drilling of rivet holes
MILLING AND GRINDING CONTOURS
- Drilling, HSC milling, jig grinding and measuring with the same machine and spindle
- High accuracy and surface quality
MACHINING OF OPHTHALMIC/FINE OPTICS
- Milling, grinding, polishing and dressing in the spectacle and fine optics industry
- Manufacturing of high-precision spheres and aspheres
DEEP HOLE GRINDING
- Machining of aircraft landing gear landing legs and many other workpieces with deep holes
INTERNAL GRINDING
- Machining of a wide variety of workpieces, including cylindrical sections as well as face, taper and ball sections
EXTERNAL GRINDING
- Grinding for highest precision on the circumference of cylindrical, conical and non-circular workpieces
TOOL GRINDING
- Compact, high-torque and high-performance spindle systems for the production of cutting tools
CONDITIONING
- Dressing and profiling of grinding wheels
- Cylindrical spindle housing or direct mounting housing
VARIOUS OTHER APPLICATIONS
- Rotational atomization of liquids such as car paint with speeds up to 80'000 1/min or liquid metal for metal powder production with speeds up to 120'000 1/min
- Honing of gear teeth

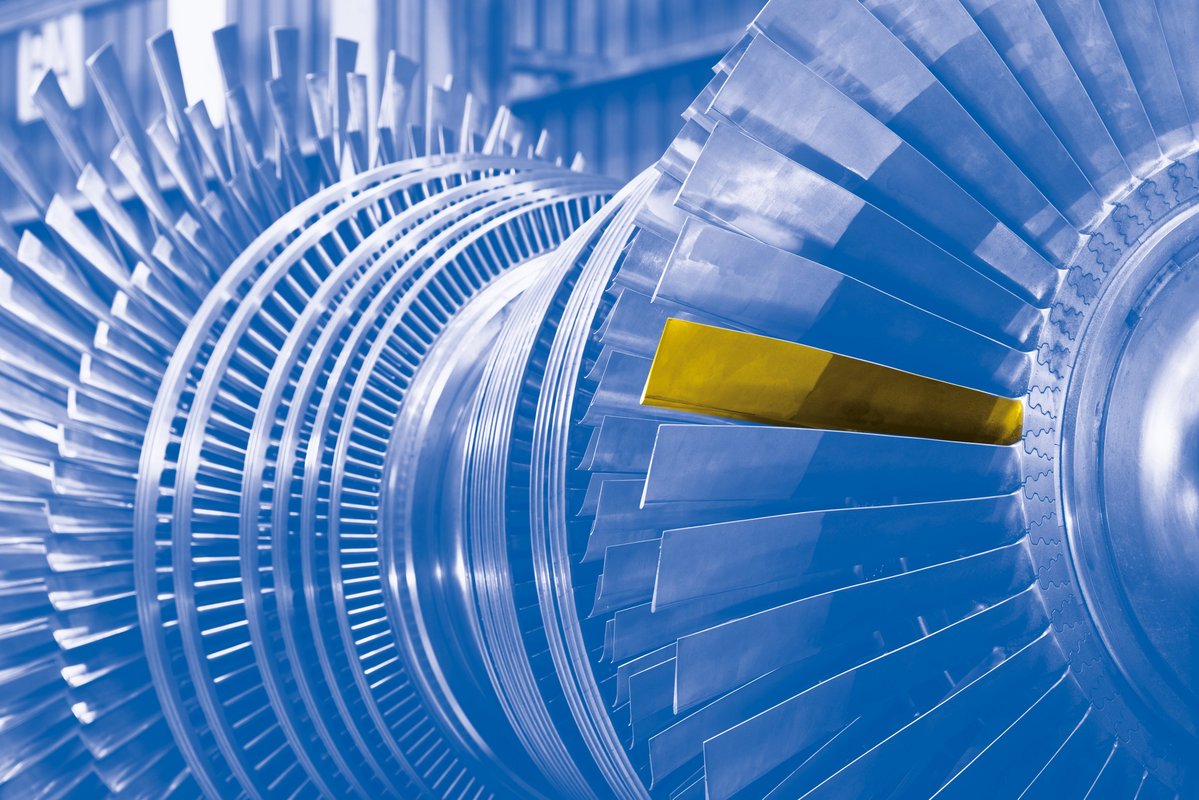

HIGH TORQUE MILLING OF TURBINE BLADES AND TURBINE WHEELS
- Milling of turbine blades and turbine wheels for the aerospace and power generation industries
- Difficult-to-machine materials such as titanium, Inconel and other high-alloy steels
- Ultra-dynamic machining with long-projecting tools
- Spindle designs with robust bearings and high rigidity at the tool interface
- Motor designs with strong torque for productive roughing and high speeds for finishing operations
HIGH-PERFORMANCE MILLING OG ALUMINUM STRUCTURAL COMPONENTS FOR AEROSPACE APPLICATIONS
- Milling of aluminum structural components
- Very high material removal rate (MRR), up to 97% material removal
- Highest productivity, 24 hours / 7 days a week
- Spindles with high speeds and highest powers up to 200kW.
- Read more: FISCHER holds the world record in this discipline, 16.4l/min
MACHINING OF COMPOSITE MATERIALS IN THE AEROSPACE INDUSTRY
- Machining of composite parts
- Milling, routing, drilling in one setup
- High-speed spindles with combined labyrinth and air seal for oil-free machining

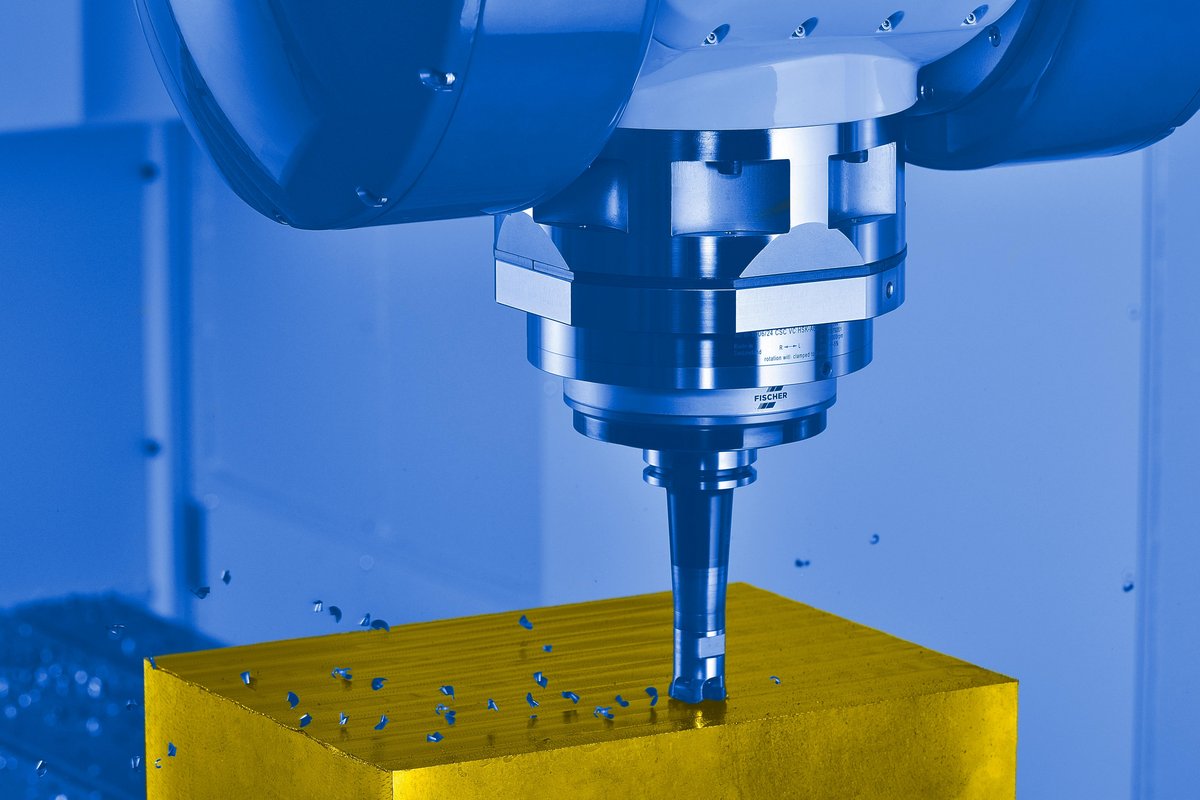

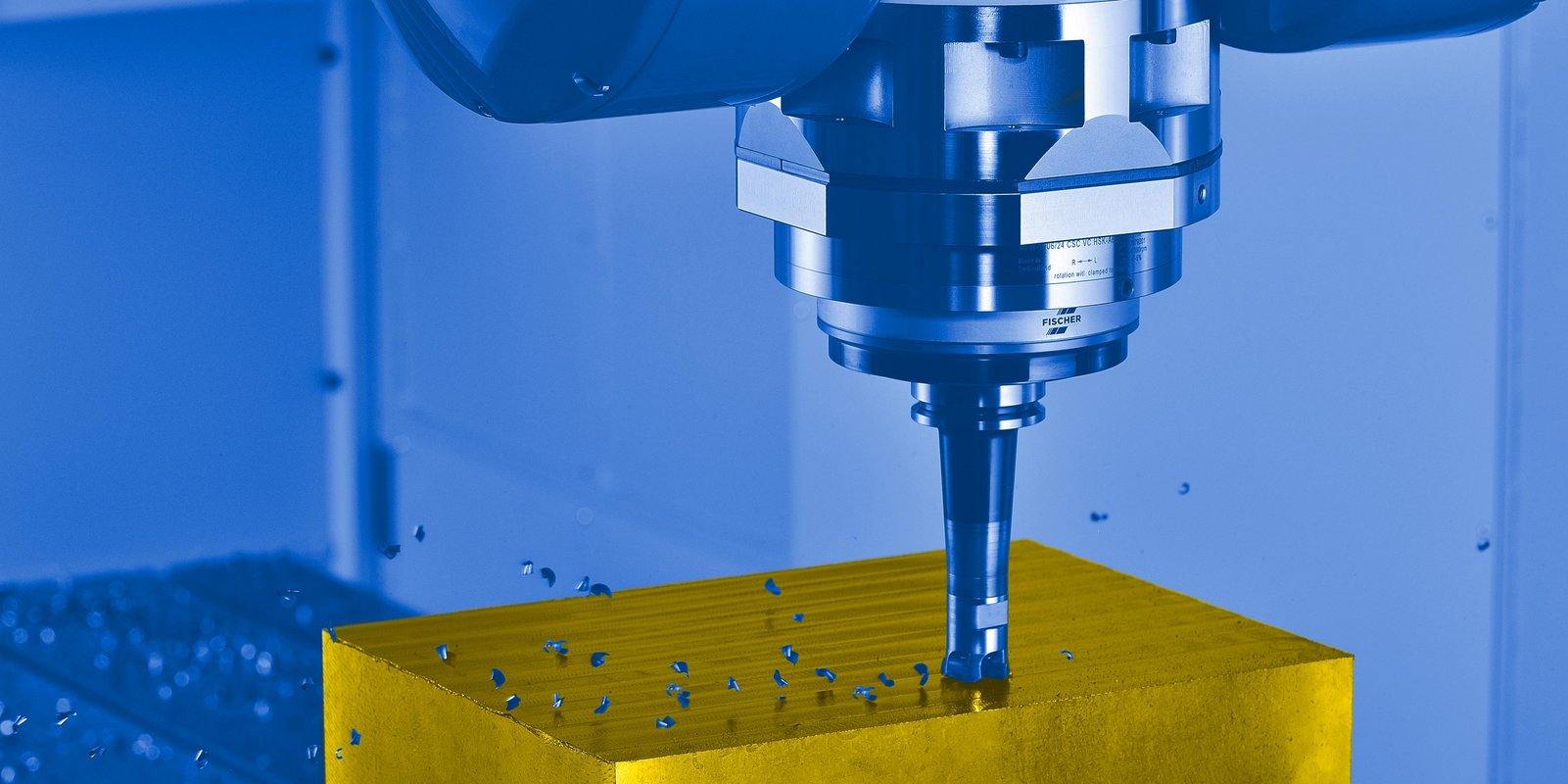

PRECISE MACHINING OF LARGE MOLDS
- Multi-sided machining of voluminous components
- High metal removal rates for roughing, long tooling for machining deep cavities, precision for layering
- Spindles with compact design for integration in 2-axis milling heads
- Broad portfolio of motor designs, torques up to 1'000Nm for roughing
- FISCHER patented technology "shaft cooling" for achieving the highest precision when finishing at high speeds

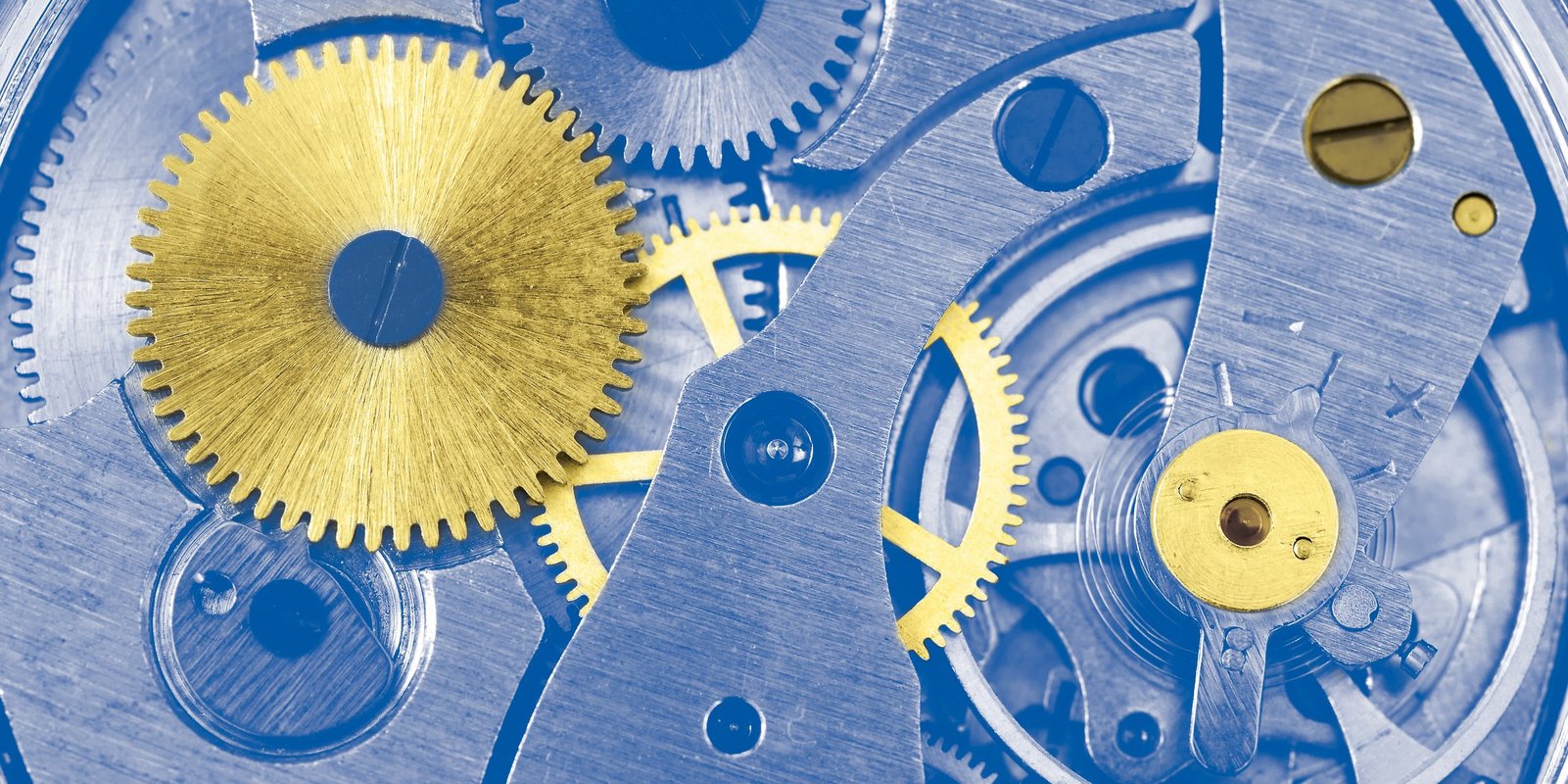

MACHINING OF WATCH CASES, MOVEMENTS, BRACELETS
- Milling, drilling, tapping and grinding in the smallest dimensions
- Highest precision when machining gold, titanium, platinum, stainless steel, ceramics and plastics
- Smallest tools require spindles with speeds of up to 70,000 rpm
- Thermal stability and long-term process accuracy for perfect surface finishes
- Compact design for use on transfer machines

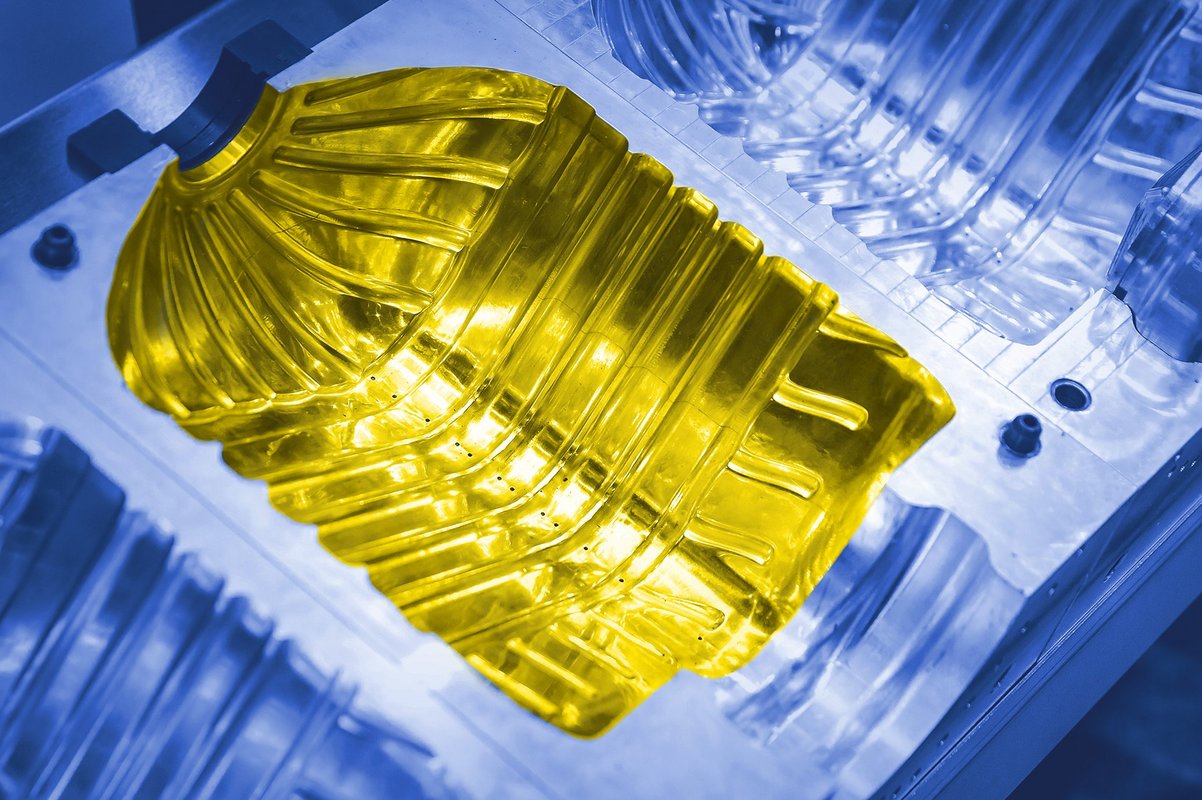

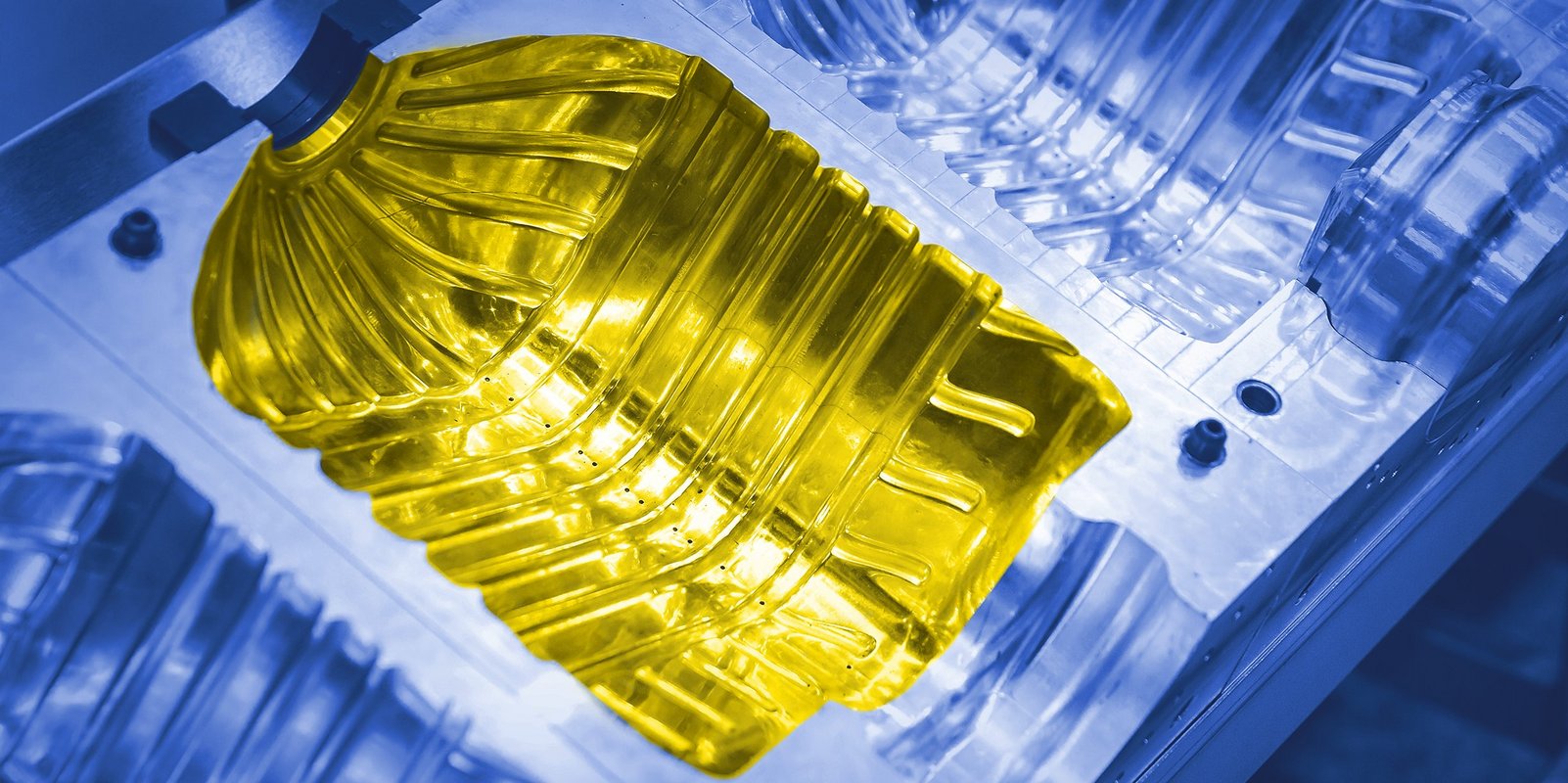

HSC MACHINING IN MOLD AND TOOL MAKING
- High-precision drilling, milling and grinding of electrodes, forming, die-casting and injection molds
- Machining of hardened steel, aluminum, copper and graphite with very precise contours
- Surfaces in mirror-like quality
- In-process measuring (3D probe) to minimize setups
- Spindle with exact concentricity and low vibrations at high speeds
- Highest precision, thermal stability and repeatability for finishing operations

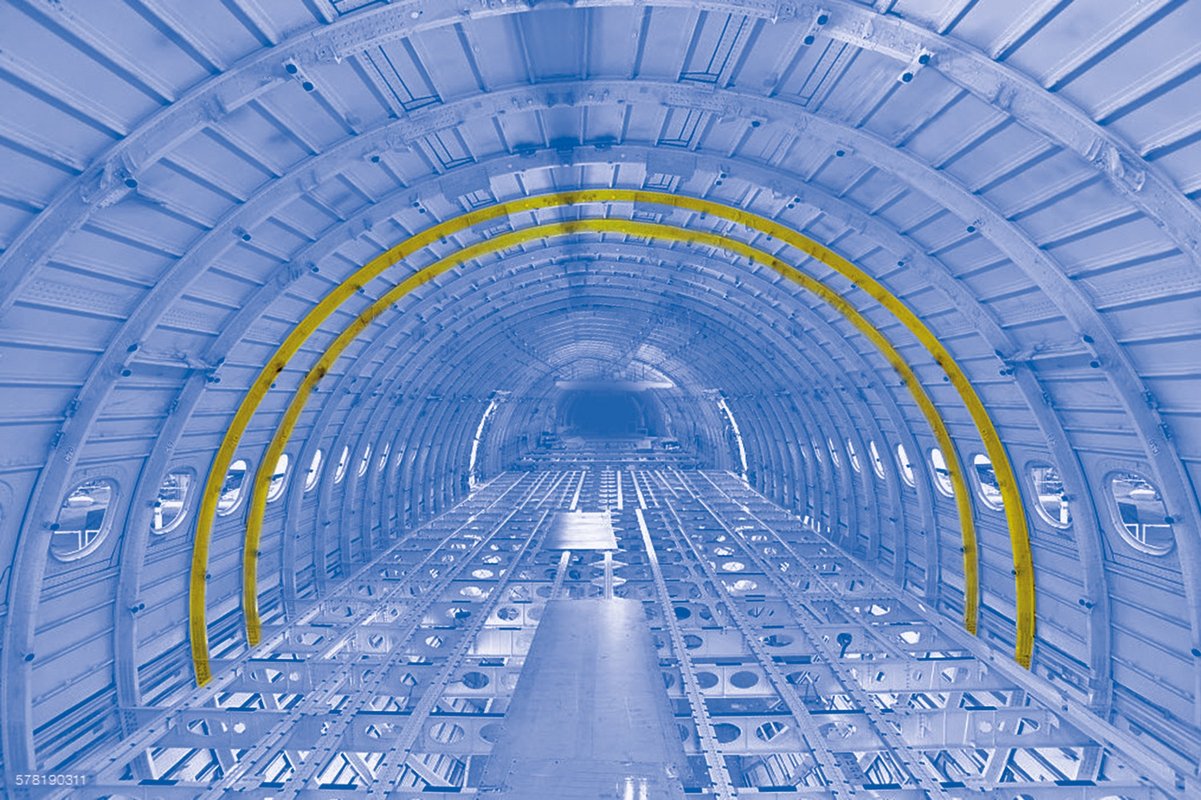

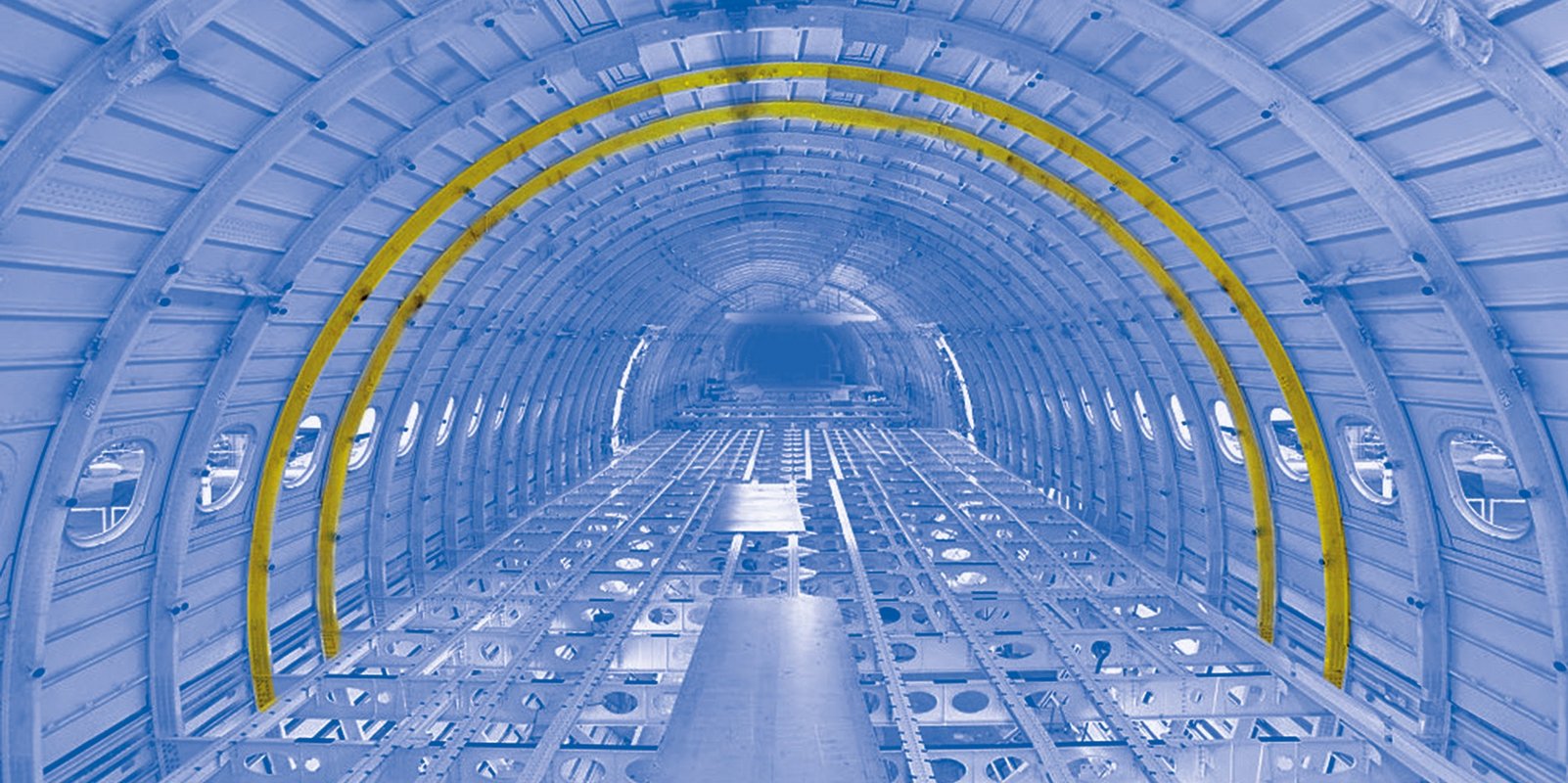

RIVET HOLE DRILLING OF AEROSPACE PARTS
- Drilling of rivet holes
- Compact spindles with high axial rigidity
- Spindle integrated systems for controlled chip breaking
MILLING AND GRINDING CONTOURS
- Drilling, HSC milling, jig grinding and measuring with the same machine and spindle
- High accuracy and surface quality
- High-speed spindles with precise concentricity and low vibration
- Precision, thermal stability and long-term accuracy
MACHINING OF OPHTHALMIC/FINE OPTICS
- Milling, grinding, polishing and dressing in the spectacle and fine optics industry
- Manufacturing of high-precision spheres and aspheres
- Applications with up to 100,000 rpm; for the production of smaller workpieces in fine optics
- Special requirements for labyrinth sealing in ophthalmic optics
- Tool interface on both sides for pre-machining and finishing with one spindle
DEEP HOLE GRINDING
- Machining of aircraft landing gear landing legs and many other workpieces with deep holes
- Custom spindles with diameter-to-length ratios up to 1:20

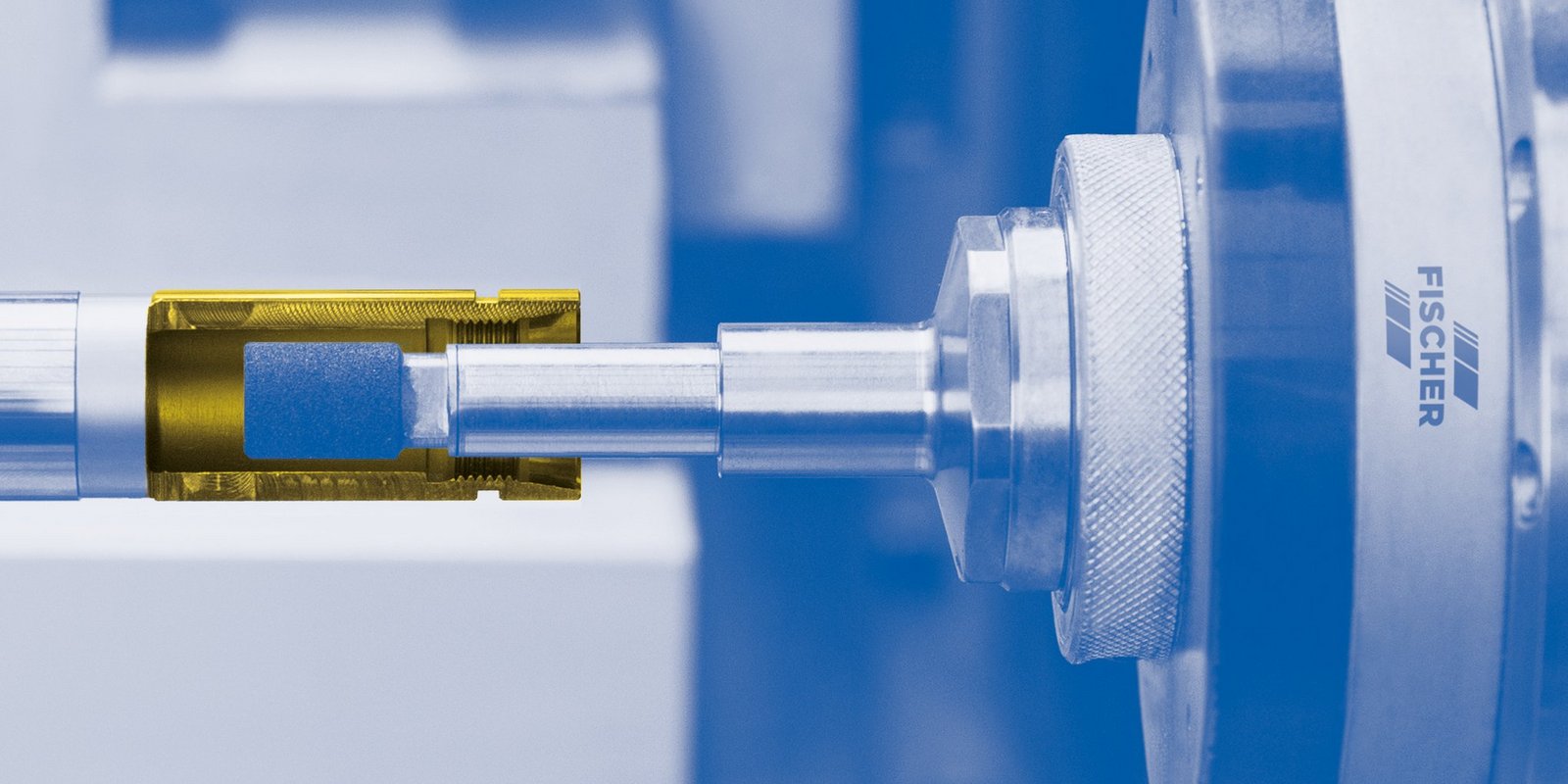

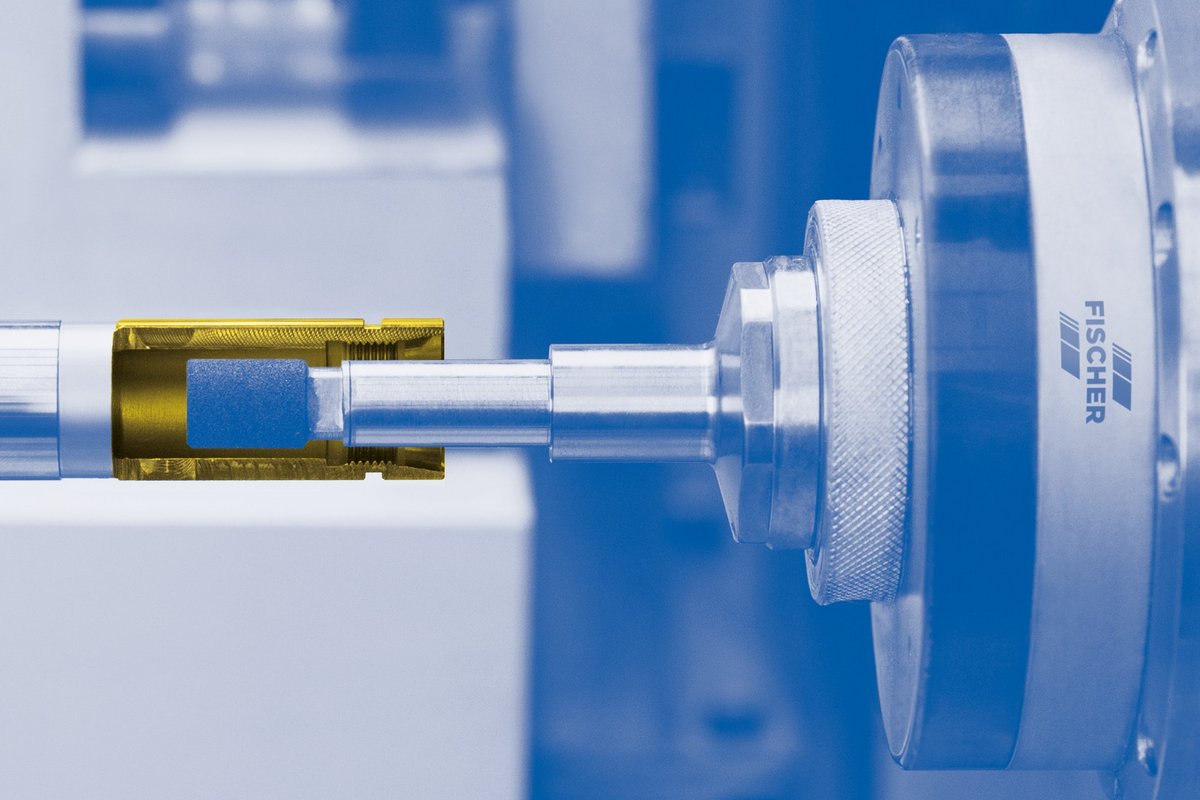

INTERNAL GRINDING
- Machining of a wide variety of workpieces, including cylindrical sections as well as face, taper and ball sections
- Spindles with highest speeds for high cutting speeds
- Highest running smoothness and precision
- Universally loadable bearings for radial, axial and combined grinding forces

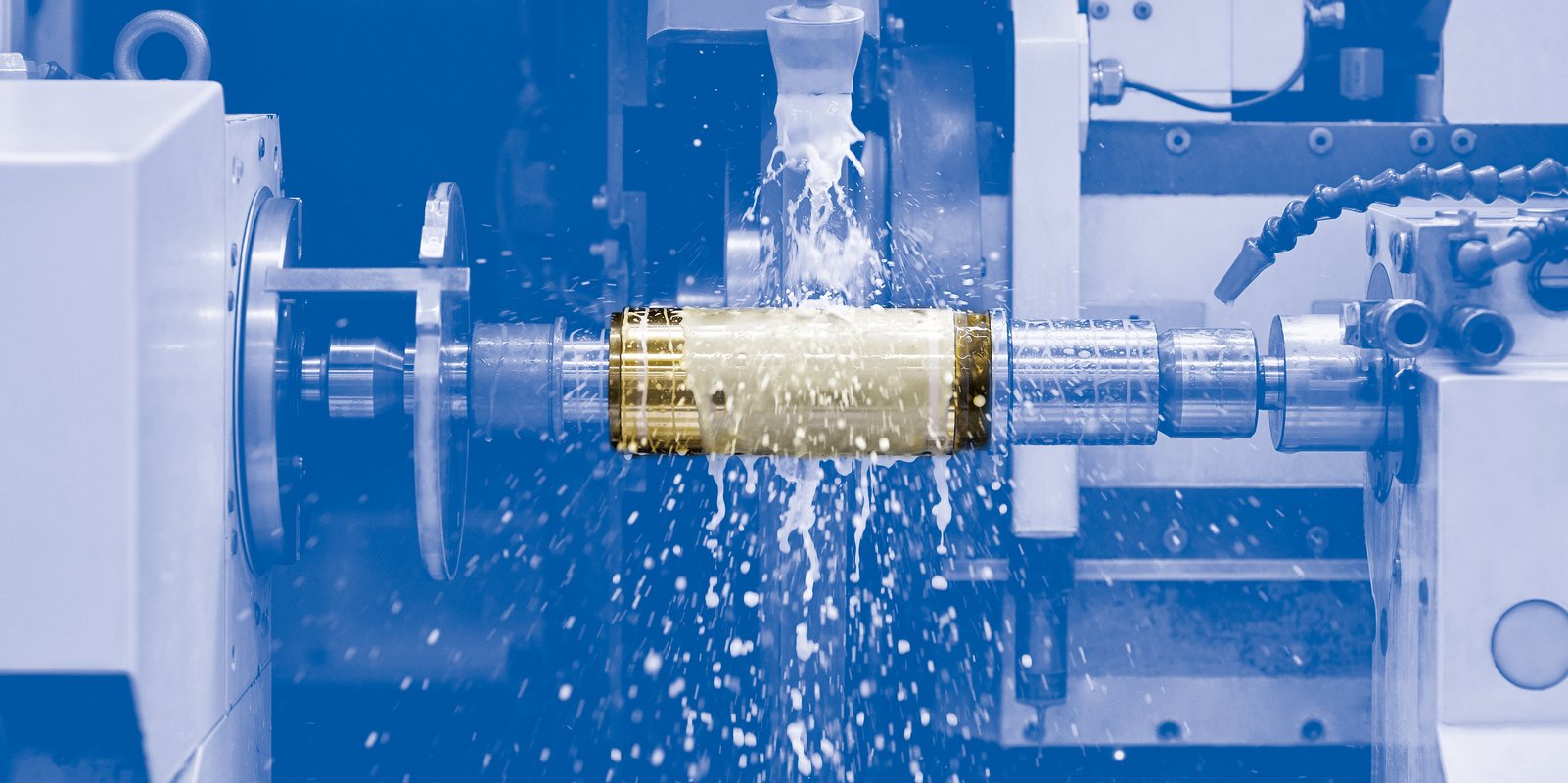

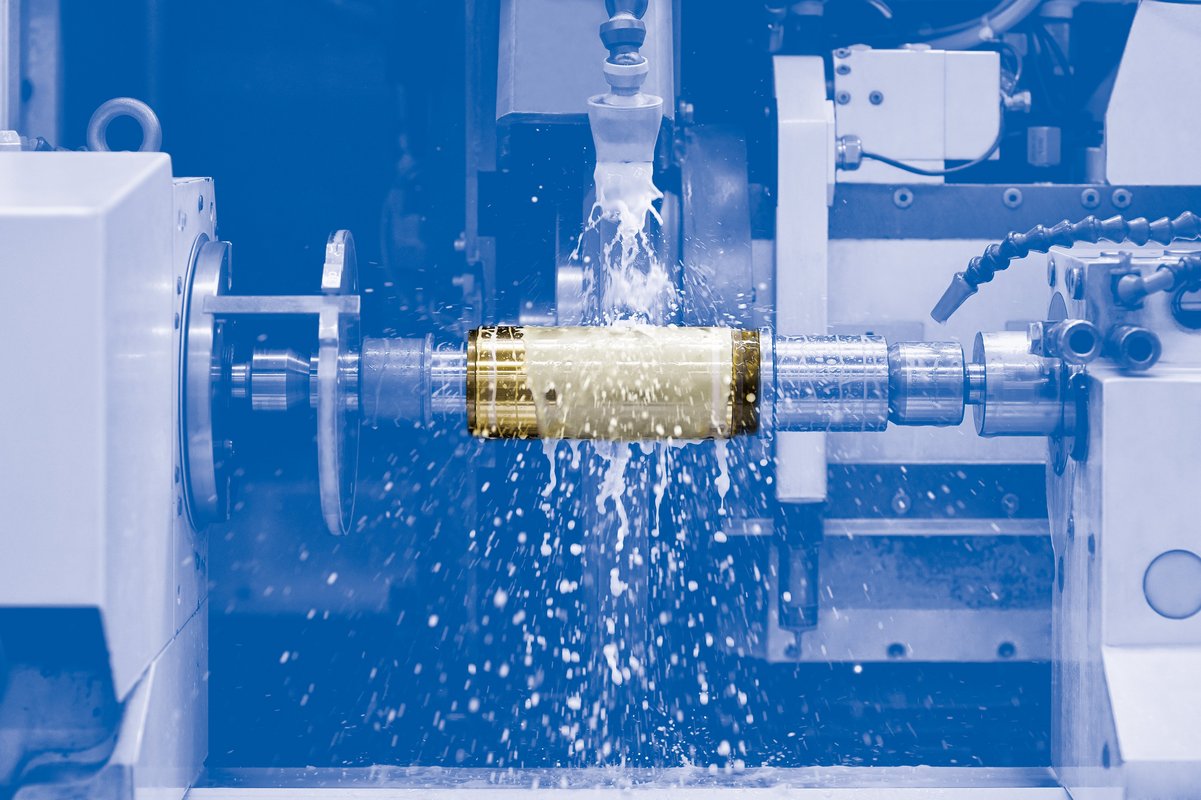

EXTERNAL GRINDING
- Grinding for highest precision on the circumference of cylindrical, conical and non-circular workpieces
- HSG grinding with peripheral speeds up to 140 m/s
- Robust and high-precision bearing systems
- High torque and high-power density due to high pole synchronous motors

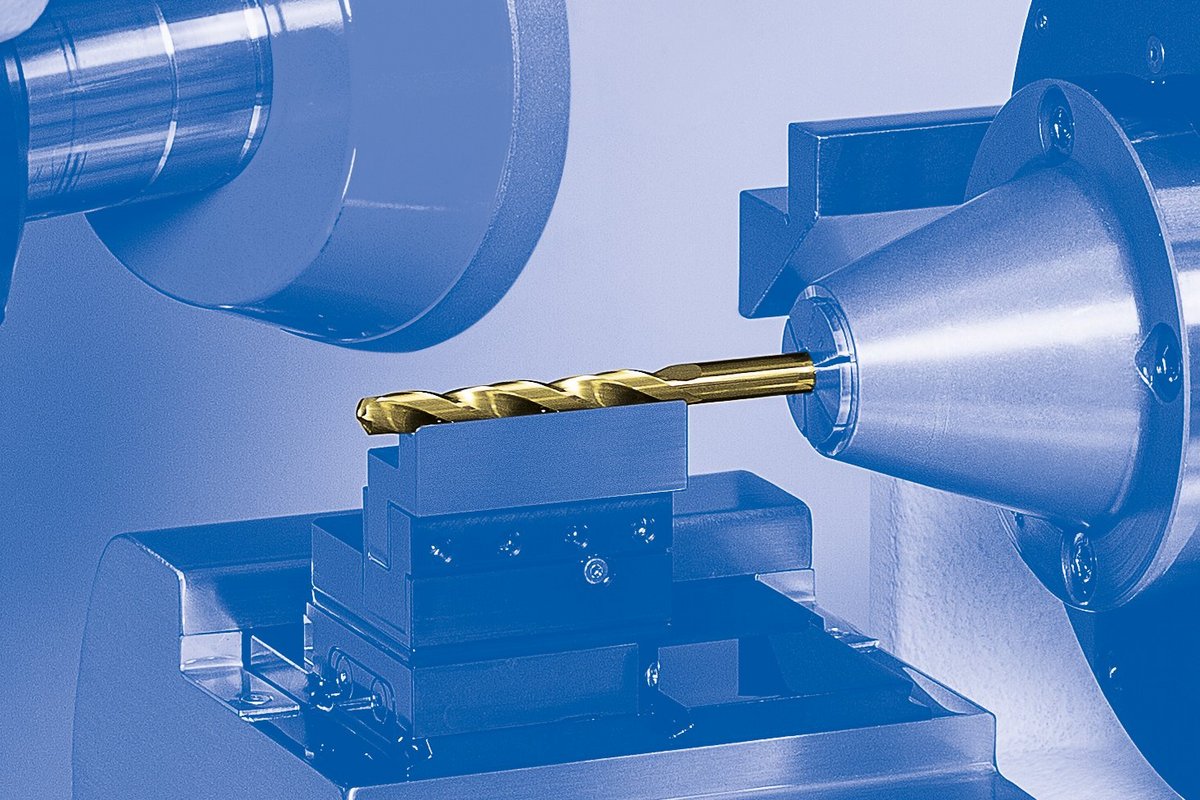

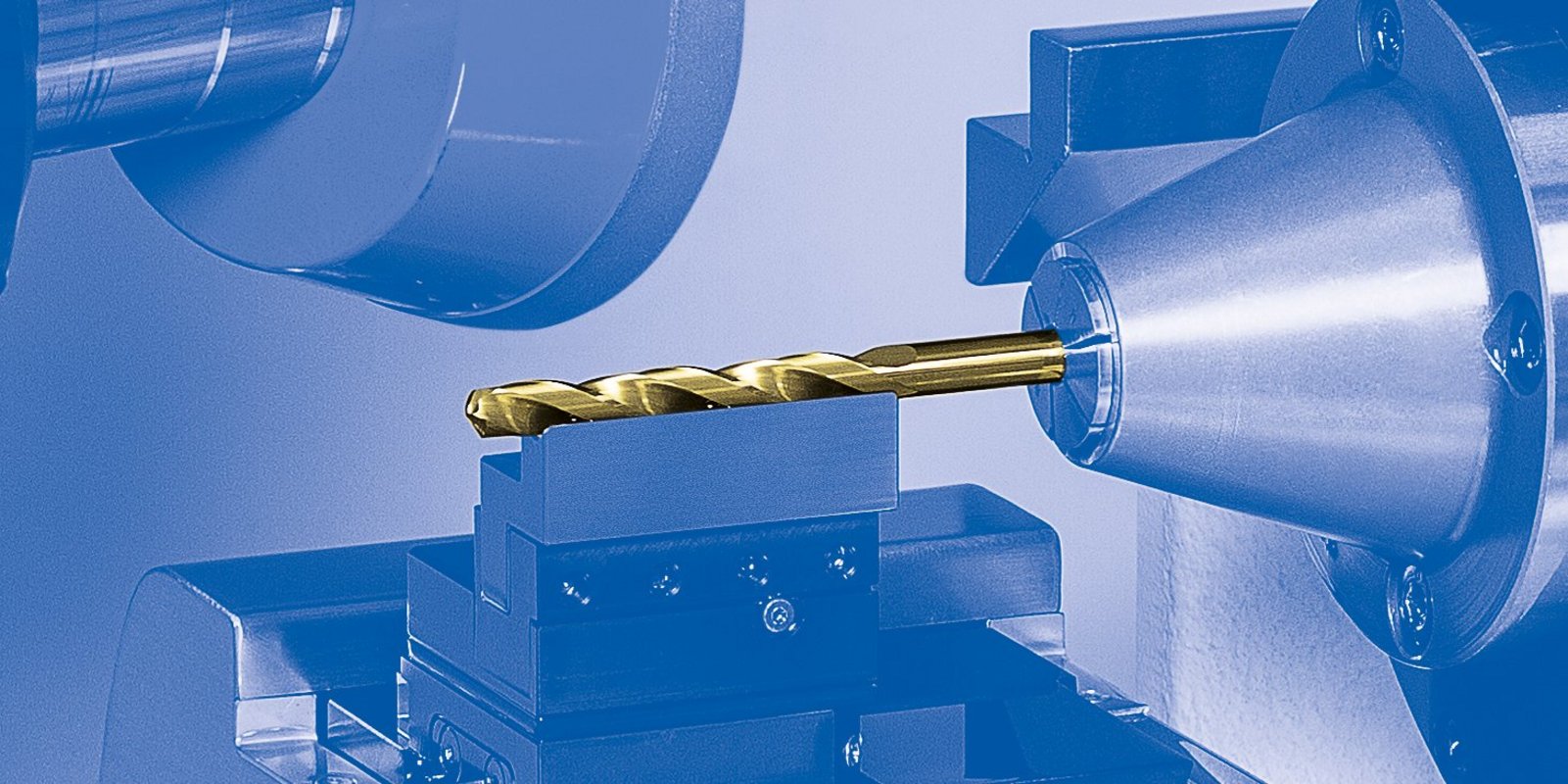

TOOL GRINDING
- Compact, high-torque and high-performance spindle systems for the production of cutting tools
- Razor-sharp cut thanks to high rigidity and robust bearings
- Minimal axial shaft misalignment
- Automatic tool clamping system or double-sided tool interface

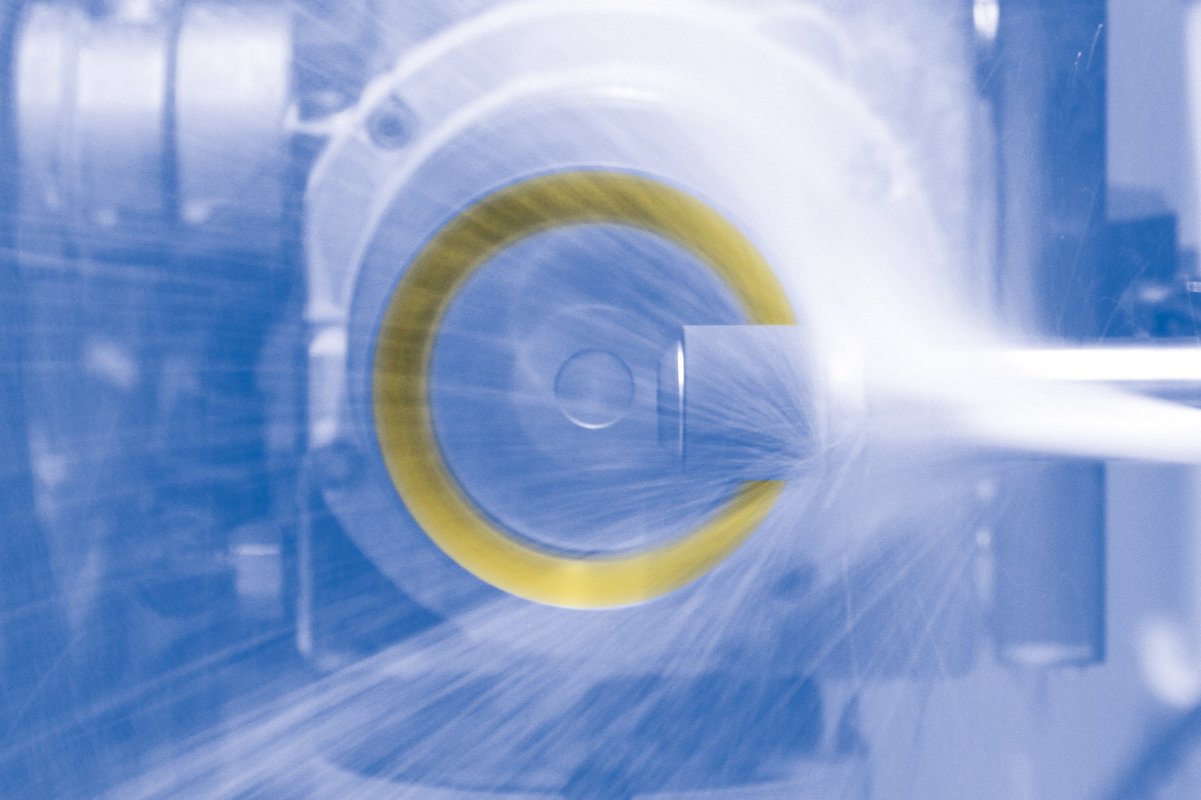

CONDITIONING
- Dressing and profiling of grinding wheels
- Compact and powerful spindles with high thermal stability for precise dressing and profiling
- Cylindrical spindle housing or direct mounting housing
VARIOUS OTHER APPLICATIONS
- Medical technology: milling of difficult-to-machine materials such as zinc oxide or chrome cobalt.
- Milling and turning of large turbines with shaft clamping integrated in spindle
- Rotational atomization of liquids such as car paint with speeds up to 80'000 1/min or liquid metal for metal powder production with speeds up to 120'000 1/min
- Honing of gear teeth
