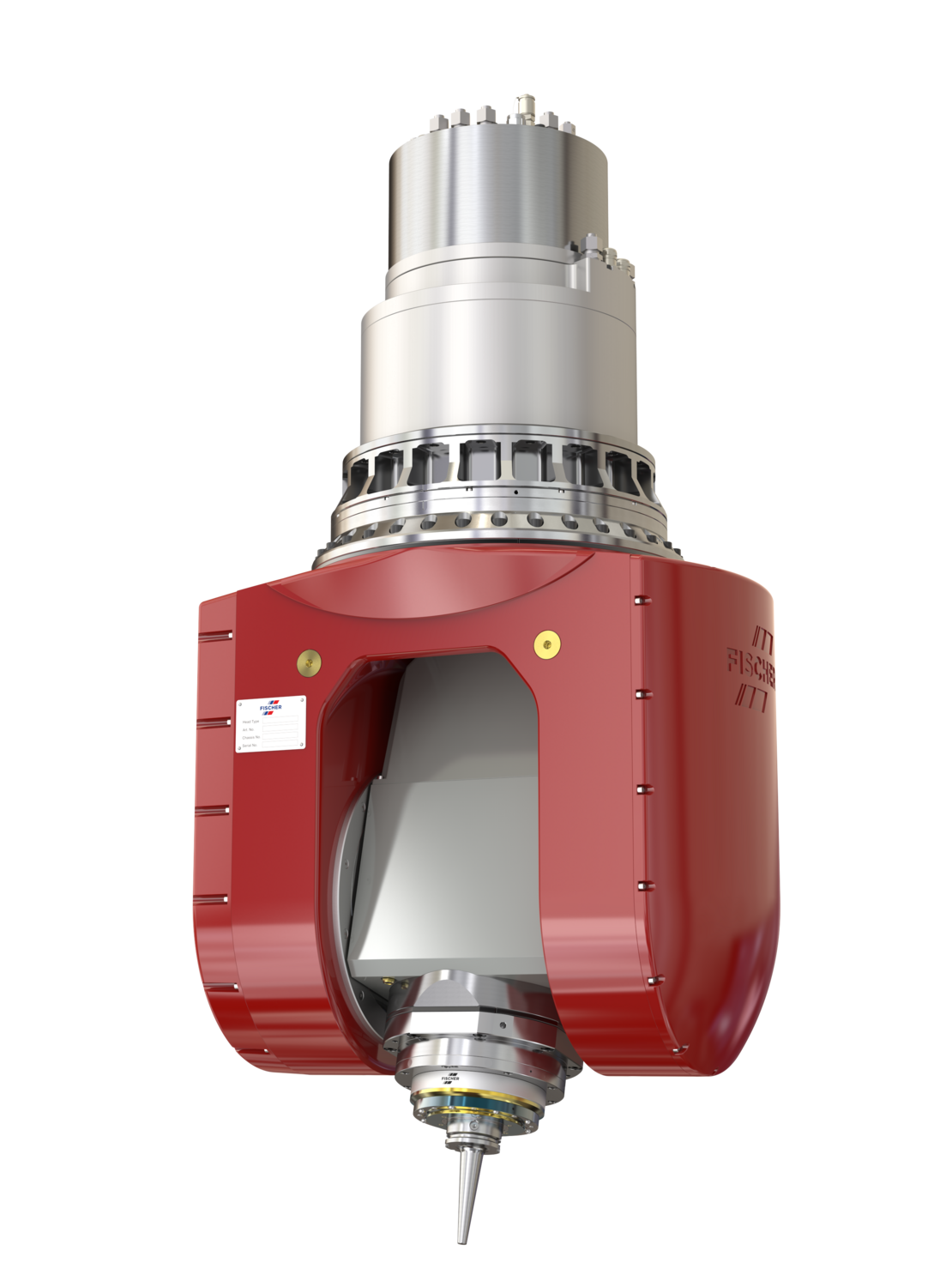

MILLING HEADS

FISCHER milling heads provide your maximum benefit as a system with a milling spindle - because our large selection of spindle-milling head combinations offers you flexibility and covers a wide variety of customer applications.

The compact rotary and swivel axis of the milling heads have been designed to optimally dampen vibrations and ensure maximum rigidity with very compact dimensions. The powerful drives in the rotary and swivel axis enable maximum acceleration - the high-torque axis clamps ensure absolute stability. Precision bearings and direct, optical measuring systems ensure maximum accuracy.

In combination with the right spindle for your application, the coordinated FISCHER milling head-milling spindle system forms the basis for your high-quality 5-axis machining.

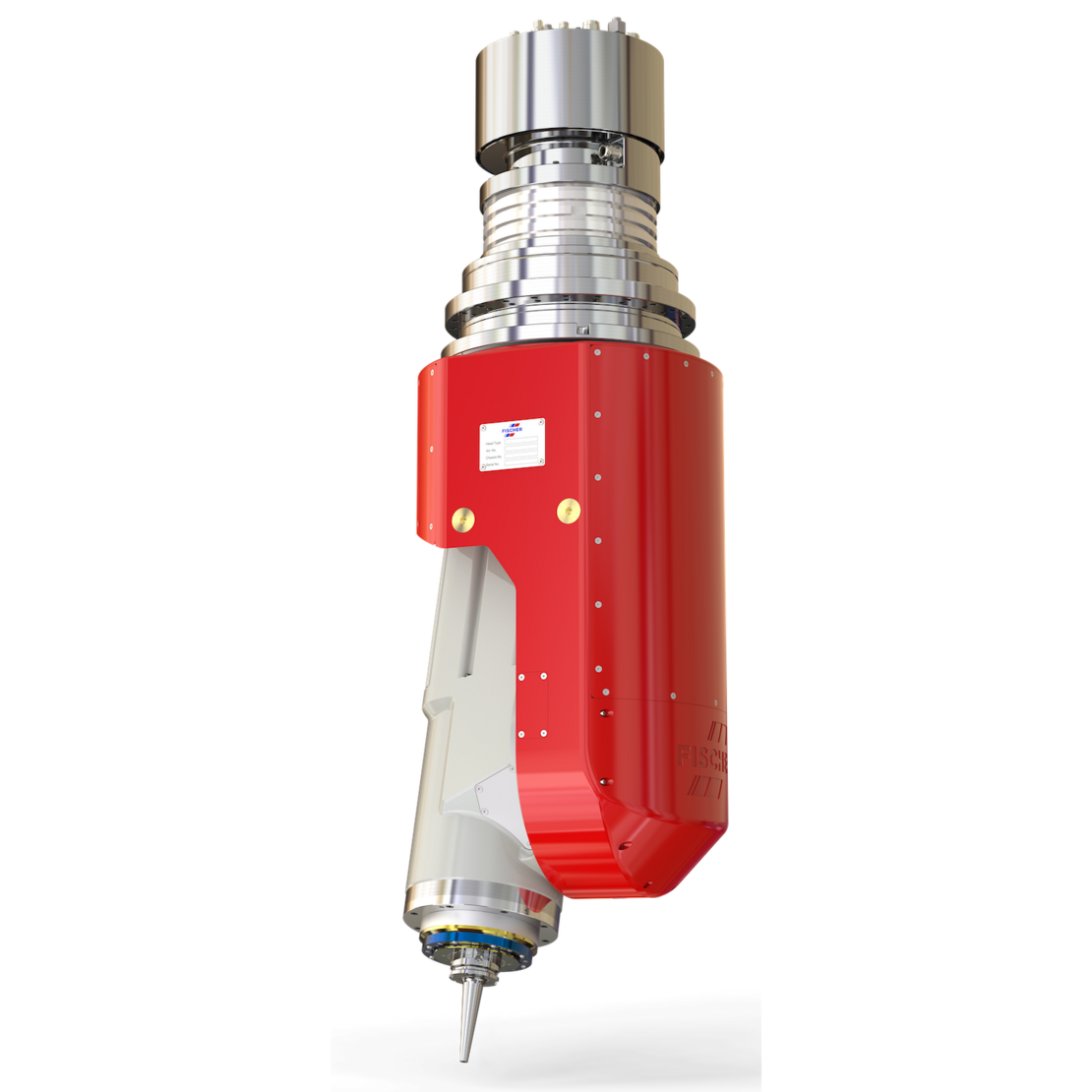

MILLING HEADS S19i

PRECISE MILLING TECHNOLOGY

MILLING HEAD S19i

Application Mold & Die (3+2 axis)
Weight 225Kg

c-axis range of motion ±360°
c-axis motor nominal torque 163Nm
c-axis motor peak torque 318Nm
c-axis clamping torque 1'900Nm
c-axis measuring system Absolute / Optical
c-axis interface EnDat 2.2

a-axis range of motion ±110°
a-axis motor nominal torque 110Nm
a-axis motor peak torque 404Nm
a-axis clamping torque 1'900Nm
a-axis measuring system Absolute / Optical
a-axis interface EnDat 2.2

Productbrochure Milling Heads

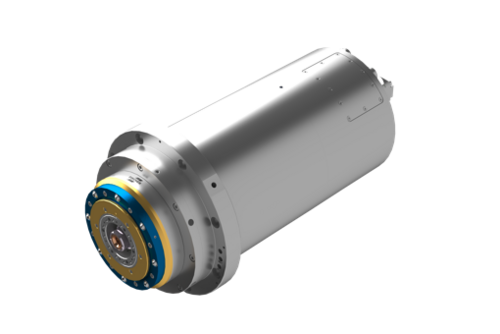

S19i - 63 / 26000 / 20 / 34.10

Tool InterfaceHSK-A63
Max. Speed26000 rpm
Bearing Lubricationoil-air (DLS)
Power (kW) S1 / S620 / 27 kW
Torque (Nm) S1 / S634.10 / 46.40 Nm

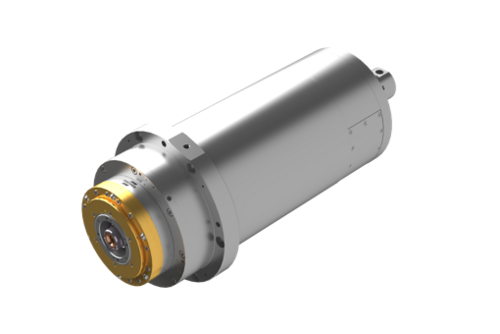

S19i - 63 / 26000 / 20 / 27.10

Tool InterfaceHSK-A63
Max. Speed26000 rpm
Bearing Lubricationoil-air (DLS)
Power (kW) S1 / S620 / 30 kW
Torque (Nm) S1 / S627.10 / 40.90 Nm

MILLING HEADS D17

Worldwide standard

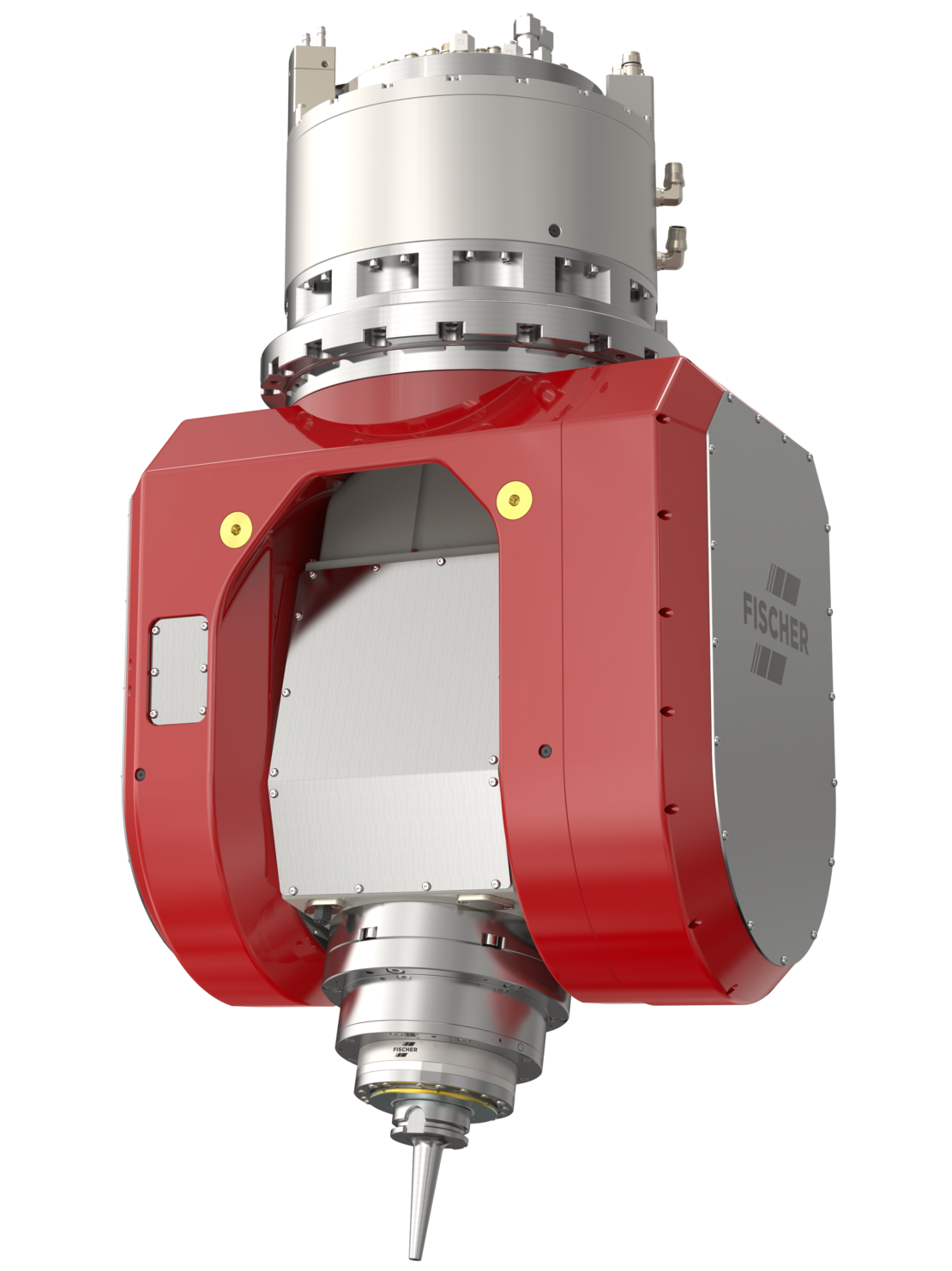

Milling head D17lite

Application Mold & Die, Aerospace

c-axis range of motion ±360°
c-axis motor nominal torque 350Nm
c-axis motor peak torque 665Nm
c-axis clamping torque 1'000Nm
c-axis measuring system Absolute / Optical
c-axis interface EnDat 2.2

a-axis range of motion ±120°
a-axis motor nominal torque 350Nm
a-axis motor peak torque 665Nm
a-axis clamping torque 1'000Nm
a-axis measuring system Absolute / Optical
a-axis interface EnDat 2.2
Productbrochure Milling Heads

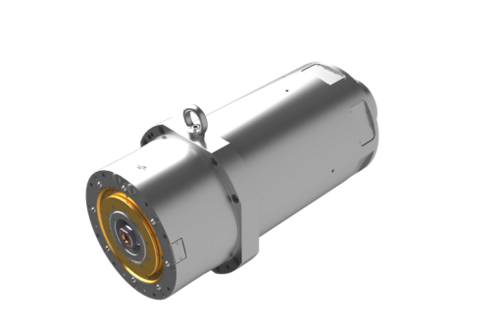

D17LITE - 63 / 24'000 / 20.00 / 21.50

Tool InterfaceHSK-A63
Max. Speed24'000 rpm
Bearing LubricationGrease
Power (kW) S1 / S620.00 / 26.14 kW
Torque (Nm) S1 / S621.50 / 28.10 Nm

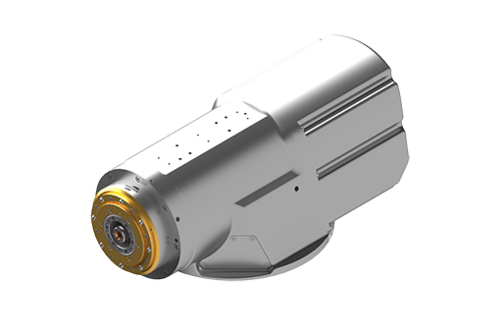

D17LITE - 63 / 24'000 / 34.00 / 39.30

Tool InterfaceHSK-A63
Max. Speed24'000 rpm
Bearing LubricationGrease
Power (kW) S1 / S634.00 / 46.59 kW
Torque (Nm) S1 / S639.30 / 53.85 Nm

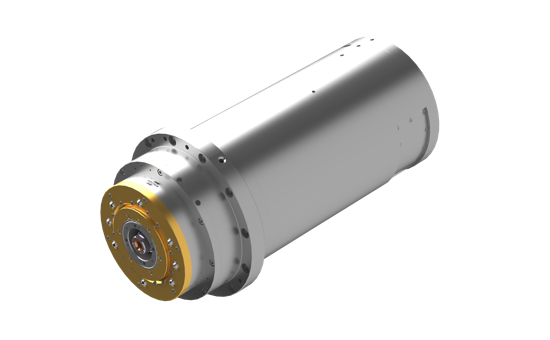

D17LITE - 63 / 30'000 / 34.00 / 39.30

Tool InterfaceHSK-A63
Max. Speed30'000 rpm
Bearing Lubricationoil-air (DLS)
Power (kW) S1 / S634.00 / 47.24 kW
Torque (Nm) S1 / S639.30 / 54.60 Nm

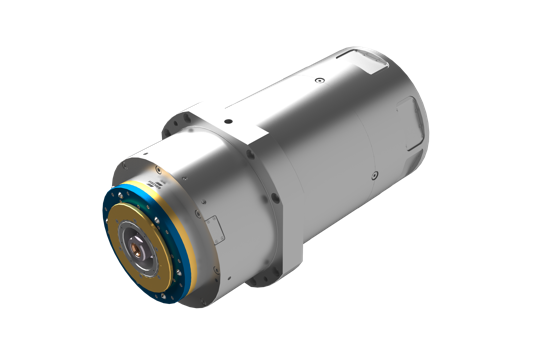

D17LITE - 63 / 30'000 / 42.00 / 22.50

Tool InterfaceHSK-A63
Max. Speed30'000 rpm
Bearing Lubricationoil-air (DLS)
Power (kW) S1 / S642.00 / 59.92 kW
Torque (Nm) S1 / S622.50 / 32.10 Nm

MILLING HEADS D19

Worldwide standard

Milling head D19lite

Application Mold & Die, Aerospace
Weight 395Kg

c-axis range of motion ±360°
c-axis motor nominal torque 543Nm
c-axis motor peak torque 1'030Nm
c-axis clamping torque Hyd. 3'000 / Pne. 2'000Nm
c-axis measuring system Absolute / Optical
c-axis interface EnDat 2.2

a-axis range of motion ±120°
a-axis motor nominal torque 543Nm
a-axis motor peak torque 1'030Nm
a-axis clamping torque Hyd. 2'000 / Pne. 2'000Nm
a-axis measuring system Absolute / Optical
a-axis interface EnDat 2.2

Productbrochure Milling Heads

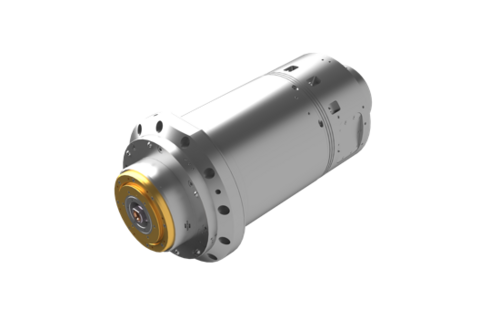

D19LITE - 63 / 26'000 / 20.00 / 34.10

Tool InterfaceHSK-A63
Max. Speed26'000 rpm
Bearing Lubricationoil-air (DLS)
Power (kW) S1 / S620.00 / 27.00 kW
Torque (Nm) S1 / S634.10 / 46.40 Nm

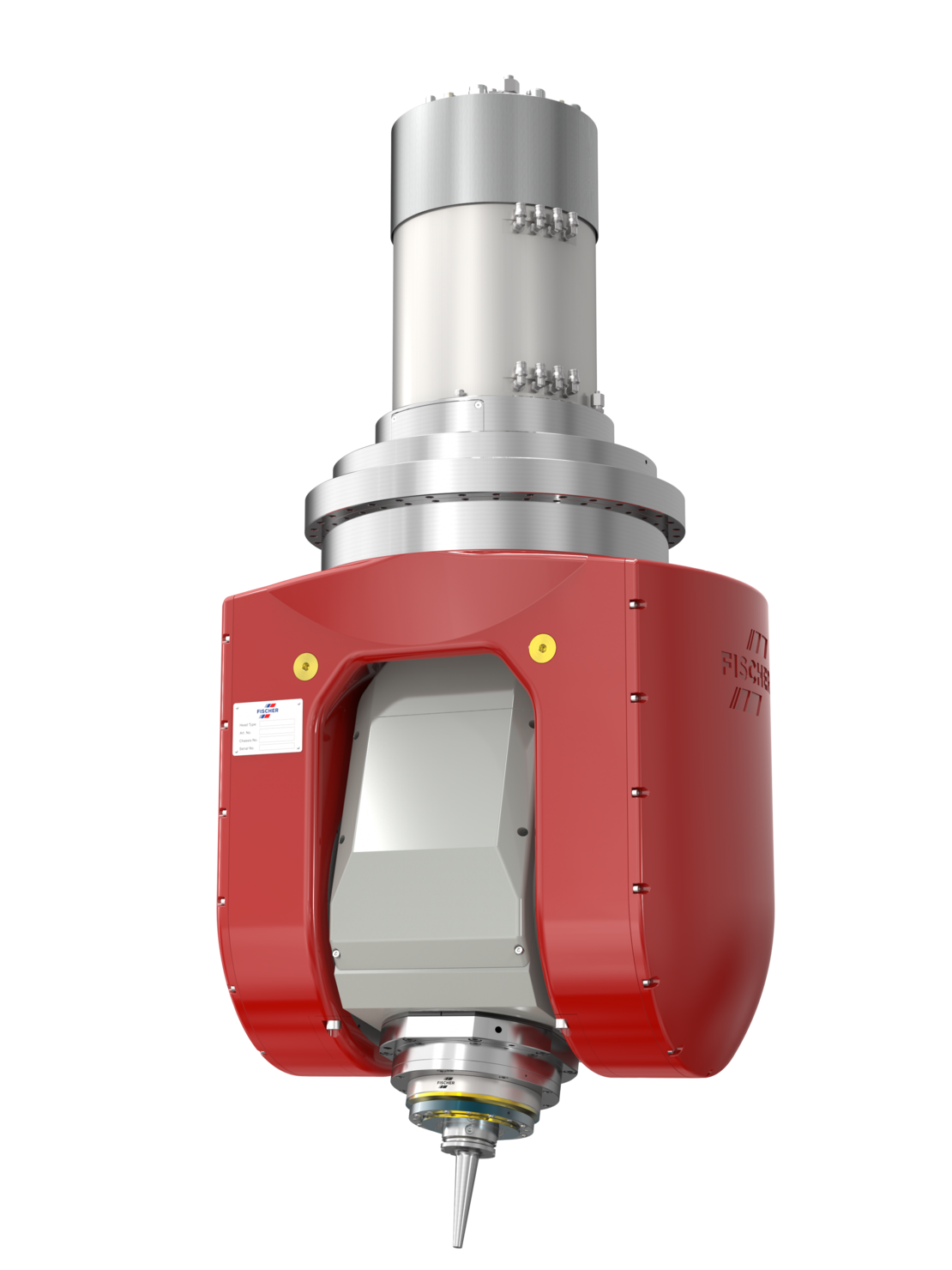

Milling head D19STD

Application Mold & Die
Weight 524Kg

c-axis range of motion ±360°
c-axis motor nominal torque 584Nm
c-axis motor peak torque 1'040Nm
c-axis clamping torque 4'000Nm
c-axis measuring system Absolute / Optical
c-axis interface EnDat 2.2

a-axis range of motion ±120°
a-axis motor nominal torque 350 x 2 = 700 Nm
a-axis motor peak torque 1'330Nm
a-axis clamping torque 4'000Nm
a-axis measuring system Absolute / Optical
a-axis interface EnDat 2.2
Productbrochure Milling Heads

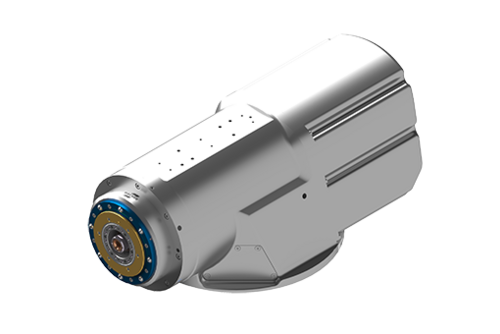

D19STD - 63 / 24000 / 42.00 / 66.90

Tool InterfaceHSK-A63
Max. Speed24000 rpm
Bearing Lubricationoil-air (DLS)
Power (kW) S1 / S642.00 / 50.00 KW
Torque (Nm) S1 / S666.90 / 83.80 Nm

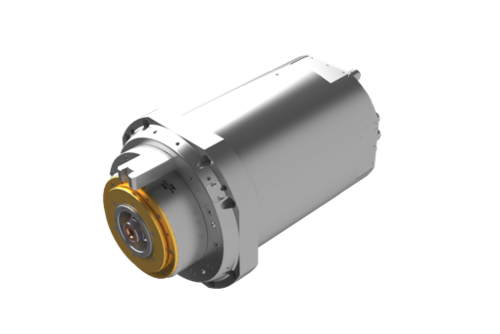

D19STD - 63 / 30000 / 80.00 / 36.40

Tool InterfaceHSK-A63
Max. Speed30000 rpm
Bearing Lubricationoil-air
Power (kW) S1 / S680.00 kW / 96.00 kW
Torque (Nm) S1 / S636.40 Nm / 43.70 Nm

MILLING HEADS D21

Worldwide standard

Milling head D21STD

Application Mold & Die
Weight 524Kg

c-axis range of motion ±360°
c-axis motor nominal torque 782Nm
c-axis motor peak torque 1'540Nm
c-axis clamping torque 4'000Nm (7'000Nm)
c-axis measuring system Absolute / Optical
c-axis interface EnDat 2.2

a-axis range of motion ±120°
a-axis motor nominal torque 726Nm
a-axis motor peaktorque 1'370Nm
a-axis clamping torque 4'000Nm
a-axis measuring system Absolute / Optical
a-axis interface EnDat 2.2
Productbrochure Milling Heads
Factsheet Aerospace Milling D21STD

D21STD - 63 / 20'000 / 25.00 / 119.40

Tool InterfaceHSK-A63
Max. Speed20'000 rpm
Bearing Lubricationoil-air (DLS)
Power (kW) S1 / S625.00 / 31.00 KW
Torque (Nm) S1 / S6119.40 / 148.00 Nm

D20STD - 63 / 30'000 / 140.20 / 72.00

Tool InterfaceHSK-A63
Max. Speed30'000 rpm
Bearing Lubricationoil-air
Power (kW) S1 / S6140.20 kW / 175.30 kW
Torque (Nm) S1 / S672.00 Nm / 90.00 Nm

MILLING HEADS D27

MAXIMUM PERFORMANCE

Milling head D27STD

Application Aerospace
Weight 1'130Kg

c-axis range of motion ±360°
c-axis motor nominal torque 3'000Nm
c-axis motor peak torque 5'000Nm
c-axis clamping torque 6'000Nm
c-axis measuring system Absolute / Optical
c-axis interface EnDat 2.2

a-axis range of motion ±110°
a-axis motor nominal torque 3'000Nm
a-axis motor peak torque 5'000Nm
a-axis clamping torque 6'000Nm
a-axis measuring system Absolute / Optical
a-axis interface EnDat 2.2
Productbrochure Milling Heads

D27STD - 100 / 8000 / 93.00 / 444.00

Tool InterfaceHSK-A100
Max. Speed8000 rpm
Bearing Lubricationoil-air (DLS)
Power (kW) S1 / S693.00 / 103.00 kW
Torque (Nm) S1 / S6444.00 / 553.00 Nm

D27STD - 100 / 15'000 / 63.00 / 300.80

Tool InterfaceHSK-A100
Max. Speed15'000 rpm
Bearing Lubricationoil-air (DLS)
Power (kW) S1 / S663.00 kW / 82.00 kW
Torque (Nm) S1 / S6300.80 Nm / 391.60 Nm

D27STD - 100 / 20'000 / 150.00 / 96.00

Tool InterfaceHSK-A100
Max. Speed20'000 rpm
Bearing Lubricationoil-air (DLS)
Power (kW) S1 / S6150.00 kW / 187.00 kW
Torque (Nm) S1 / S696.00 Nm / 119.00 Nm

D27STD - 100 / 20'000 / 50.00 / 251.00

Tool InterfaceHSK-A100
Max. Speed20'000 rpm
Bearing Lubricationoil-air (DLS)
Power (kW) S1 / S650.00 kW / 62.00 kW
Torque (Nm) S1 / S6251.00 Nm / 313.00 Nm

Milling head D27MAX

Application Aerospace
Weight 1'471Kg

c-axis range of motion ±360°
c-axis motor nominal torque 4'000Nm
c-axis motor peak torque 8'000Nm
c-axis clamping torque 8'000Nm
c-axis measuring system Absolute / Optical
c-axis interface EnDat 2.2

a-axis range of motion ±120°
a-axis motor nominal torque 3'900Nm
a-axis motor peak torque 7'300Nm
a-axis clamping torque 8'000Nm
a-axis measuring system Absolute / Optical
a-axis interface EnDat 2.2
Productbrochure Milling Heads

D27MAX - 100 / 20'000 / 200.00 / 140.00

Tool InterfaceHSK-A100
Max. Speed20'000 rpm
Bearing Lubricationoil-air (DLS)
Power (kW) S1 / S6200.00 kW / 250.00 kW
Torque (Nm) S1 / S6140.00 Nm / 176.00 Nm
